ARK FROM INFO : Space that controls the amount of information that should be processed

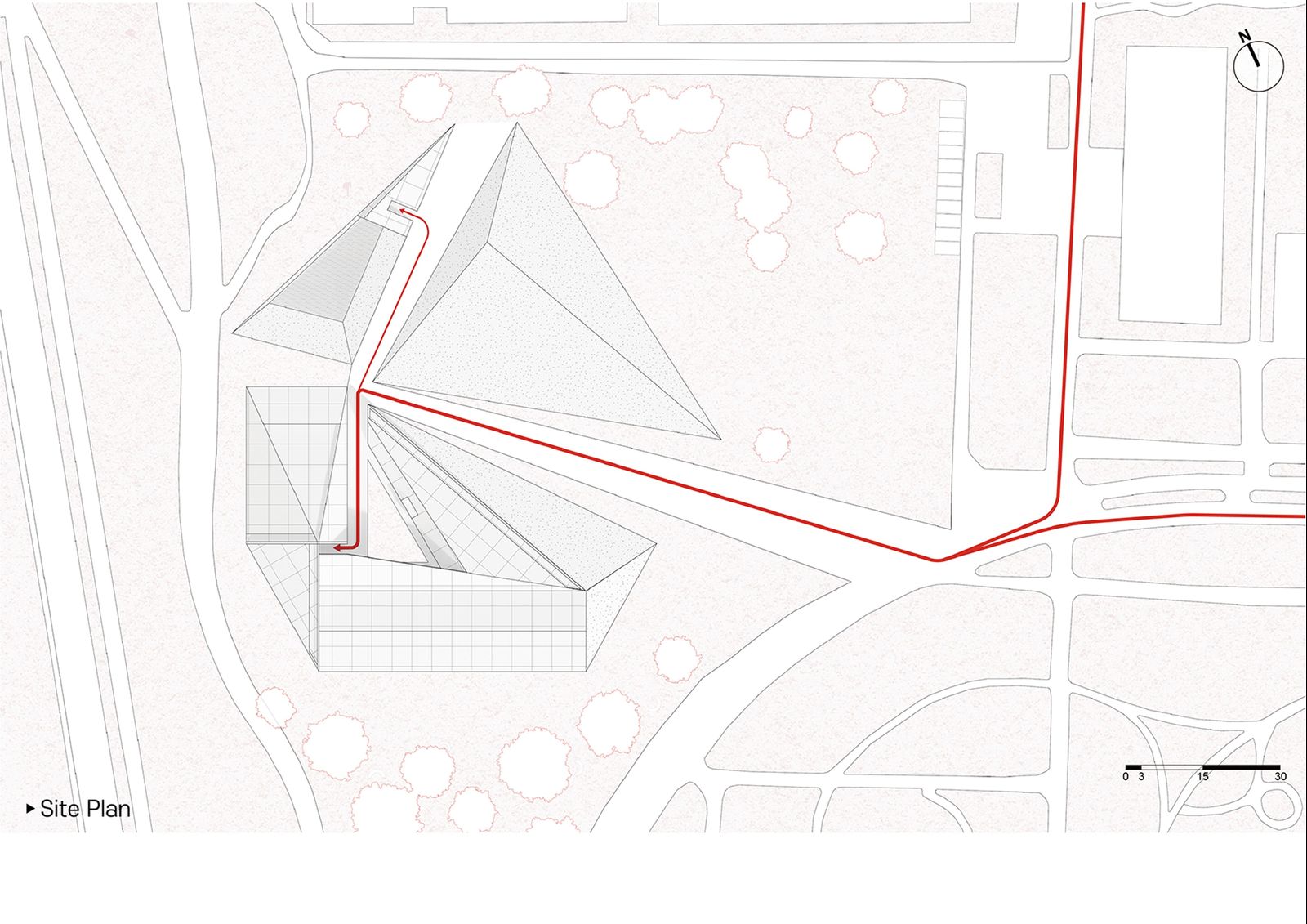

• Address: 685-6 Sungsudong, Sungdong-gu, Seoul, Korea • District: Natural Green District • Site area: 12,692m2 • Building Use: Cultural Facility • Building Coverage : 2,540m2 allowed maximum (20% per SMG regulation) • Floor Area Ratio: 6,340m2 allowed maximum (50% per SMG regulation) • Total Existing Building floor area: 2,314m2 Office(2F): 394m2 Stable A(2F): 743 m2 Stable B(1F): 769 m2 Stable C(1F): 408 m2

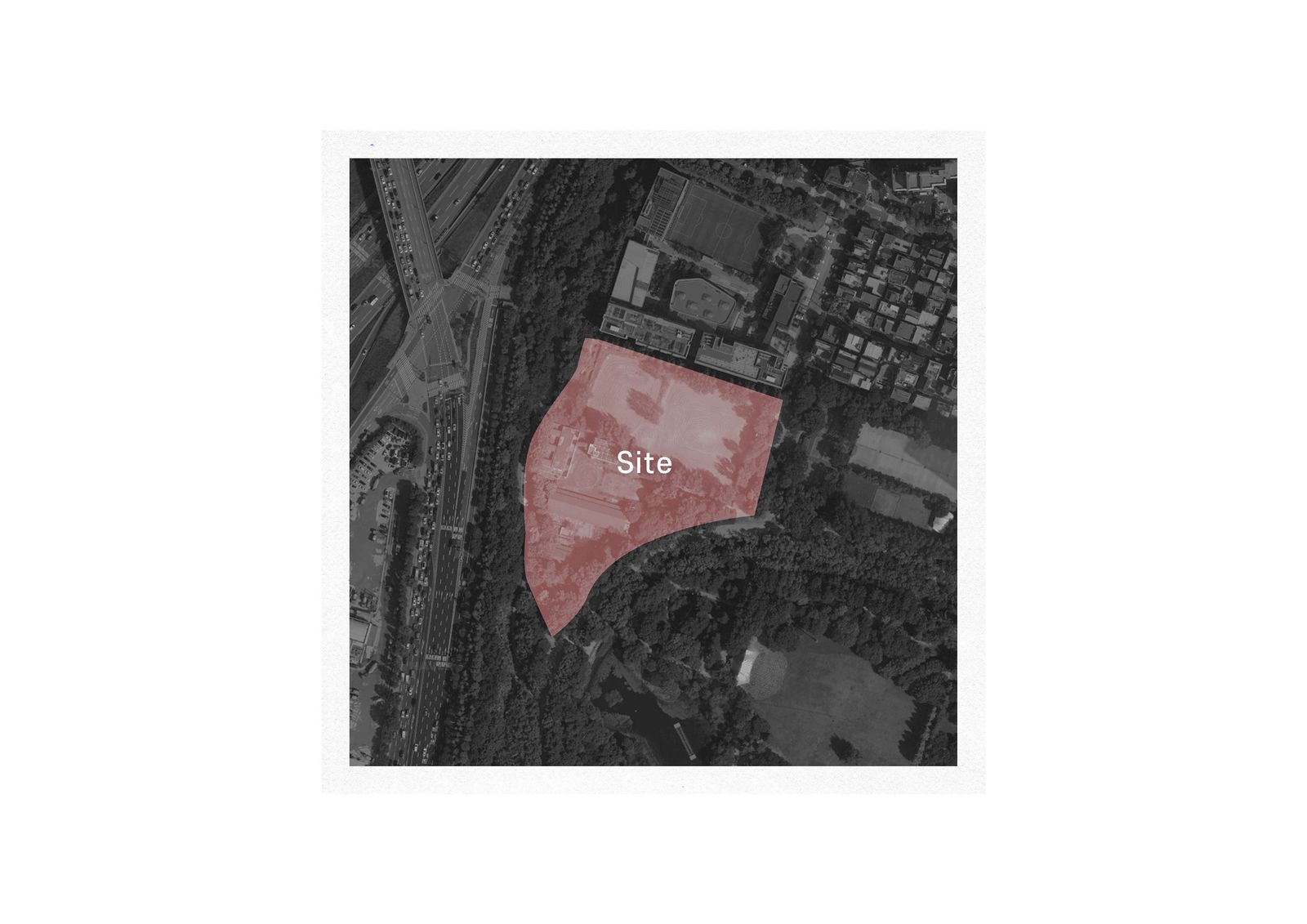

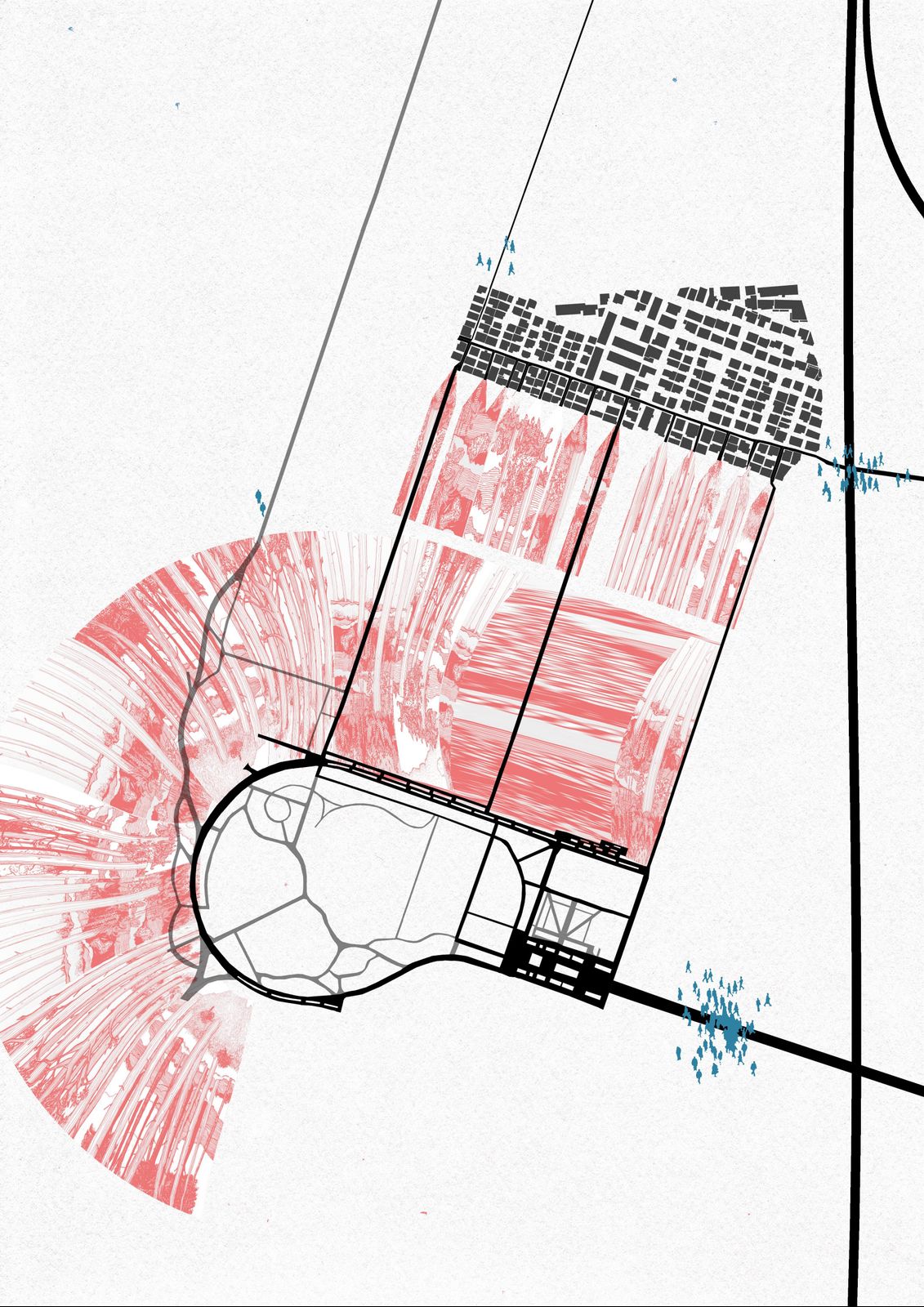

Site Analysis Diagram 1. As you walk to the site, view are continuously repeated and changed in discontinuity. 2. History that used to be an island, so it's a natural, fixed circulation that comes from its historical nature 3. the flat topography of Seoul Forest 4. All spaces are external space 5. a place of rest and healing 6. Nature in Mega City(SEOUL)

Have you ever imagined a world without cell phones and the Internet? Such a world would feel very stuffy for a person living in the modern world. But on the contrary, is there no need for a world without cell phones and the Internet? It is necessary to think about. In modern times, digital information is so vast that it is called a sea of information. Thanks to this vastness, we can easily find and use information anywhere, anytime. But because of this endless vastness, we are also being suppressed. And we can't escape the vastness anywhere or at any time. Then, we need a space to escape from this endless vastness. Information is like rain. The right amount of rain(=information) helps us grow and live. But too much rain causes flooding. Like too much digital information causing flood information. The library should be a space to prepare for floods. Because the library is a space of publicity and information.

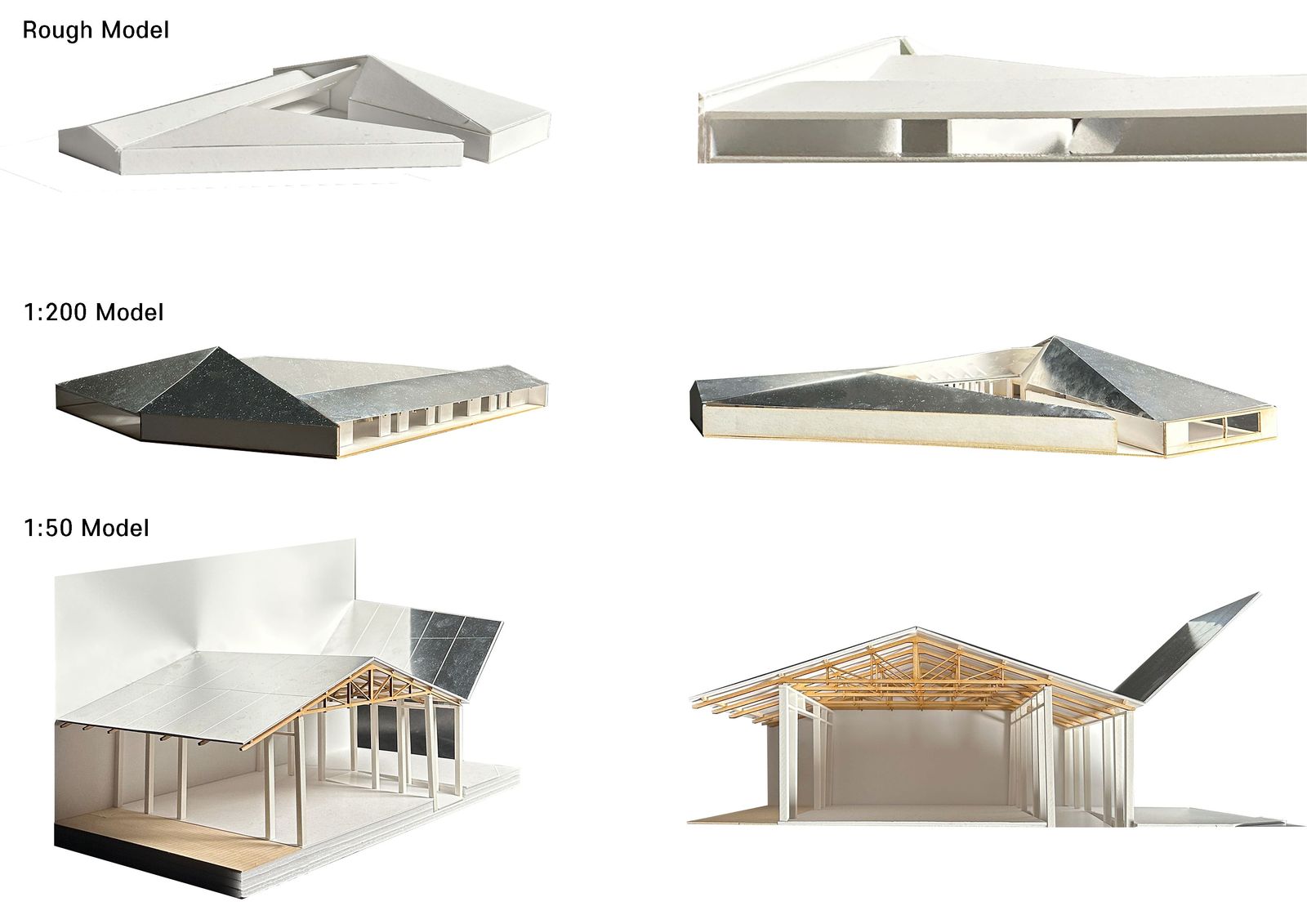

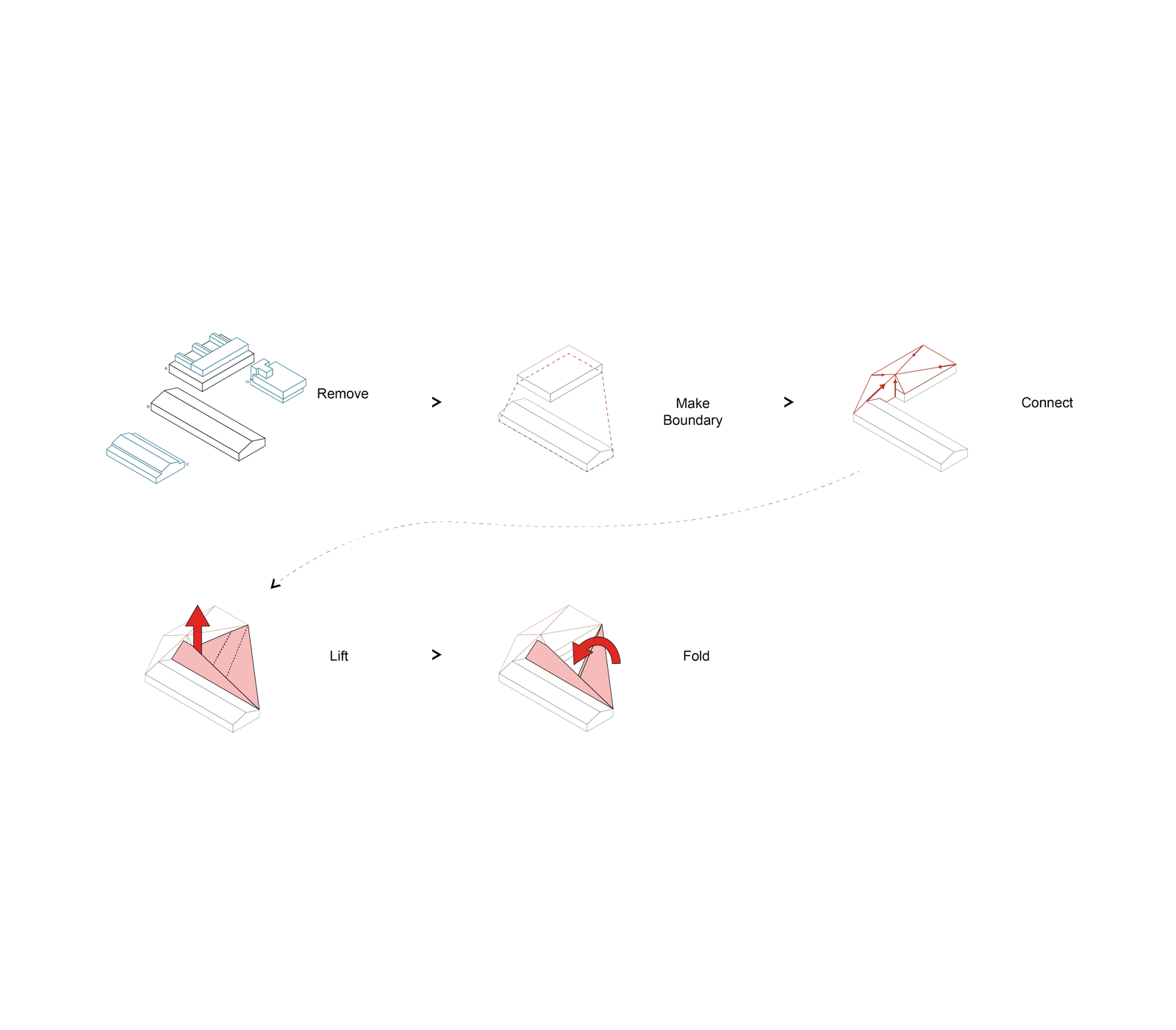

In the mass study, there were two concepts and thoughts that I carried out while maintaining them: mass that blends into the topography, an iconic shape reminiscent of a house, and Masa-dong B with a gable roof. So I used two processes to form mass. First, the connection between the two buildings using the oblique lines of the roof Second, the connection between topography and buildings Except for the first building used, the rest of the building was deleted and a boundary line was created to connect the two. Third, a new mass was created to connect A and B using the oblique lines of the gable roof. And the topography was raised and folded based on the center point.

Space where you can create a context on the existing flat ground and rest against it. New sense of space created by new landscape. Escape from a rectangular city.

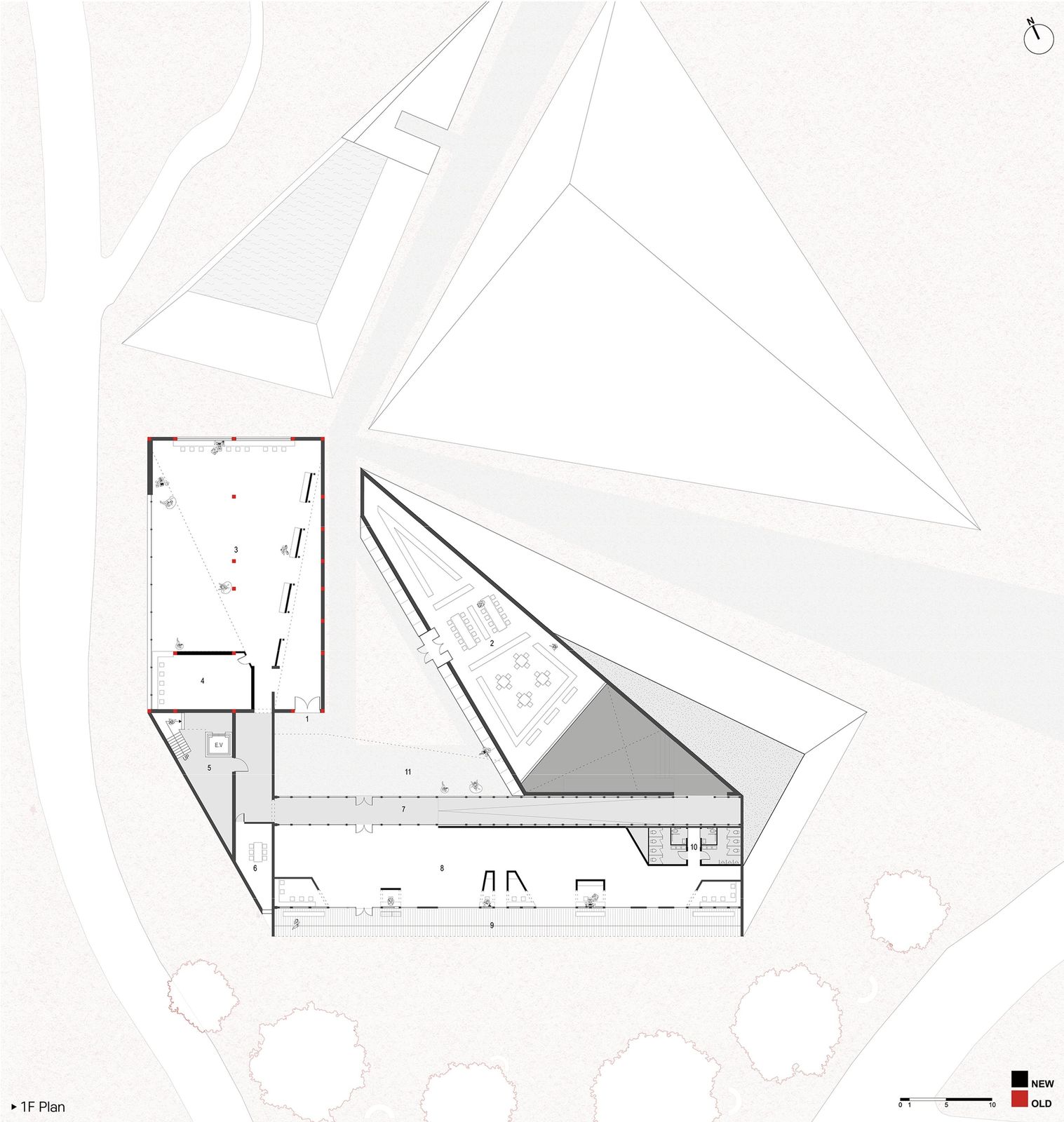

1 - Main Entrance 2 - Library 3 - Space A 4 - Reading Room 5 - Stair and Elevator 6 - Study Room 7 - Hallway 8 - Space B 9 - Terrace 10 - Toilet 11 - Courtyard Free to choose multiple spaces in an open space located at the main entrance.(11) A space surrounded by buildings where you can rest against a diagonal wall.(11) The space in which books exist (library) exists independently (to control the amount of information each person can have in the space).(2) Offers a wide range of Space atmosphere.

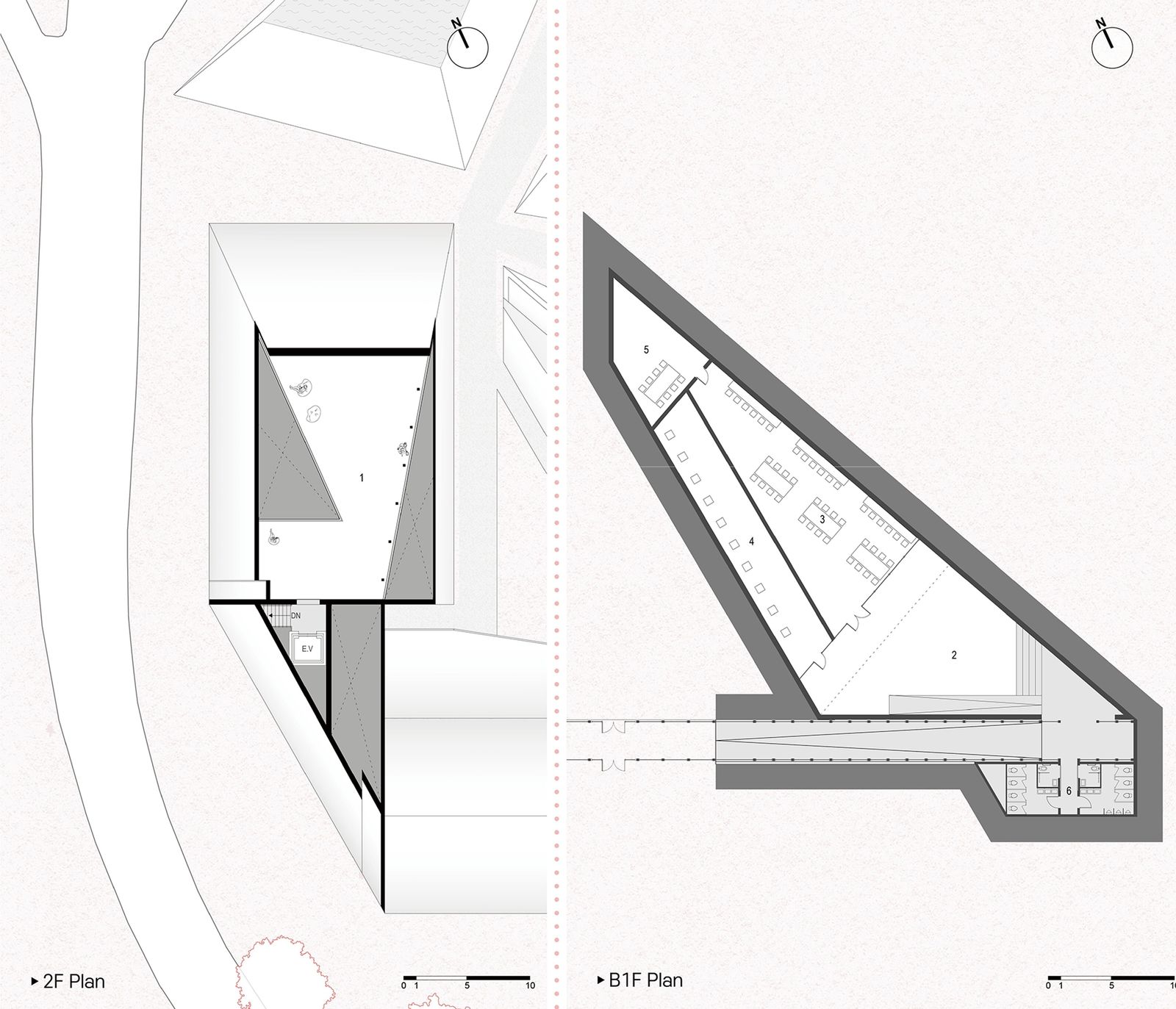

1 - Space A.2 2 - Space D 3 - Reading Room 4 - Work Room 5 - Study Room 6 - Toilet 2F Space directly close to the roof. Changes in the height of space depending on where you stand. B1F Space to enter through the longest line movement. Vertical contrast between bright and dark spaces where the library is located.

01 The view from the courtyard when you enter the space for the first time Repeated and discontinuous views overlapping with nature seen in between due to repeated arrangements of columns A space where you can rest leaning on the diagonal wall

02 The distinction between the roof and the wall is ambiguous, but there is a distinction. Light coming through the roof. High ceilings and a sense of form.

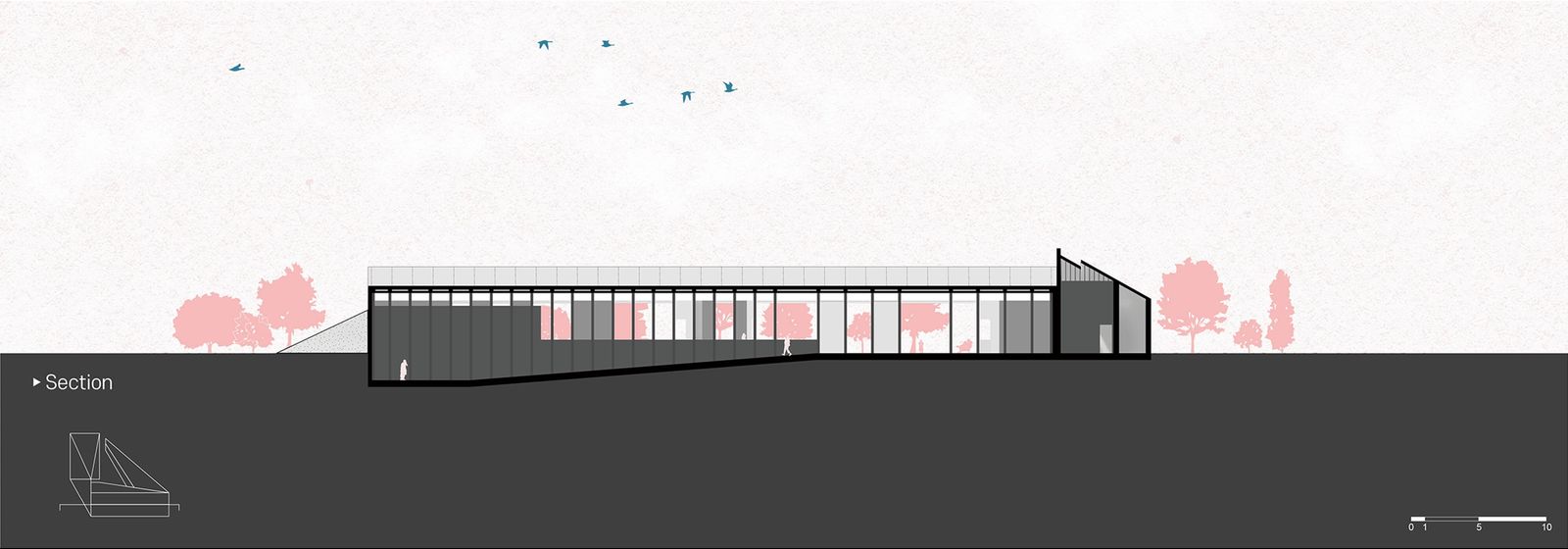

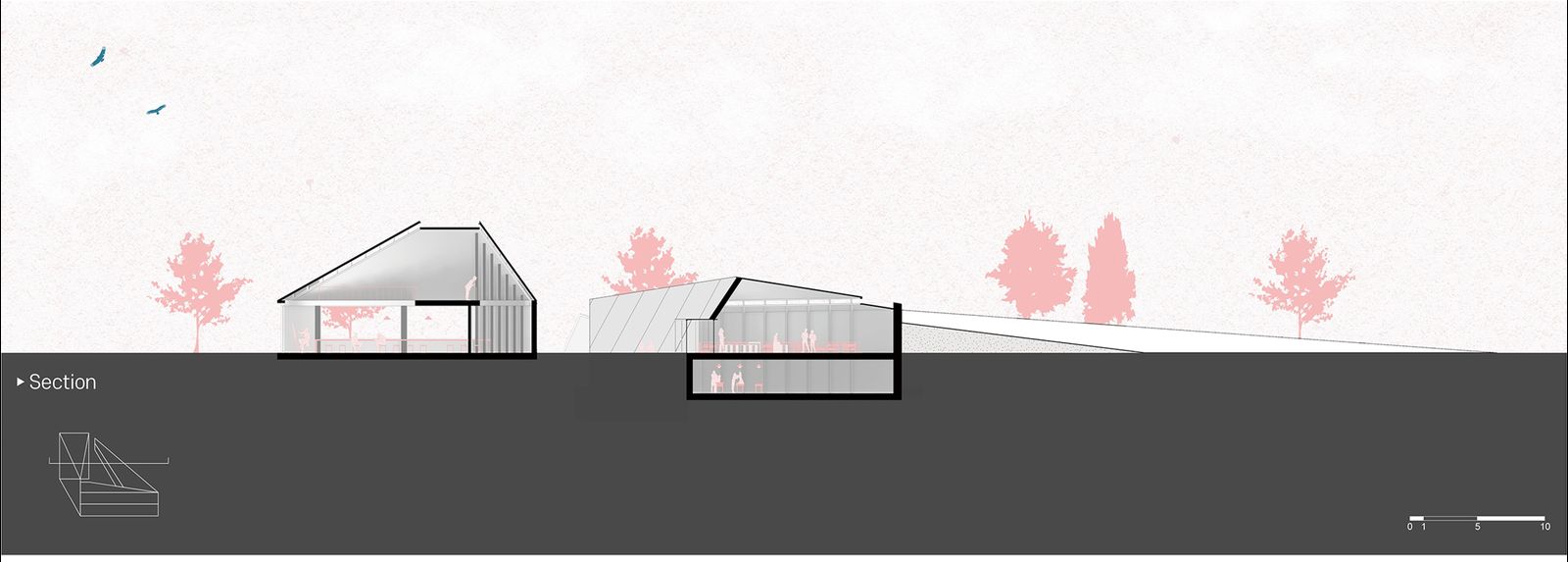

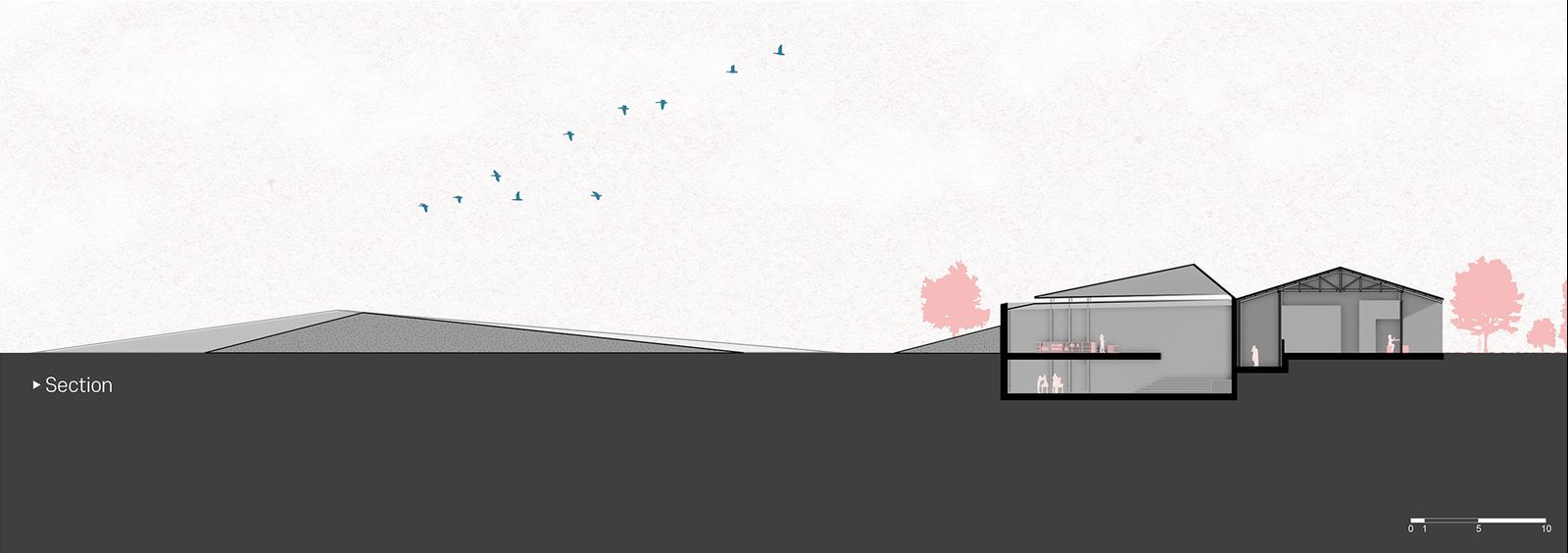

03 A cross-section of eyes between the second and first floors. Light falling through the roof. A sense of the shape of a roof given by the light flowing along the surface of the roof.

04 The rhythm of the columns following the existing arrangement of truss structures A sense of space given through a space that is stretched along a long stretch of the column. Changes in the sense of space as the height of the floor gradually decreases 05 The narrowest and highest sense of space as a space that connects the movement.

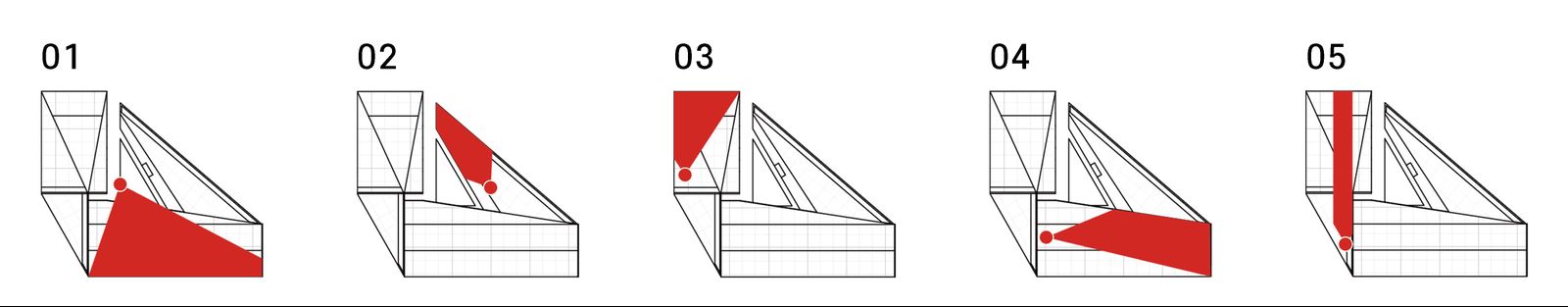

Render View - Keymap
